4. Bi directional IR

IR Receiver Cable Directions:

Insert the supplied receiver into the SoloCAT HD™ “IR2 IN”

port and place the IR Receiver Cable, so that you can point to it

easily with your IR remote controller.

IR Blaster Cable Directions:

Plug IR blaster cable plug into the SoloCAT HD™ “IR OUT”

port, It sits in front of the source receiver’s IR sensor, which is

normally located on the front-panel.

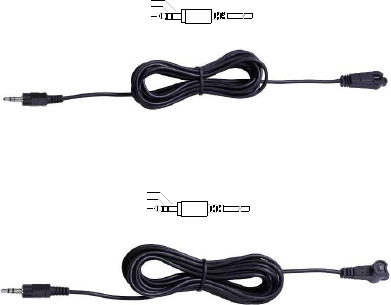

IR Receiver Cable

GND

Si g

IR Blaster Cable

P+

N-

1 2 3 4 5 6 7 8 9 10 11 12 13
