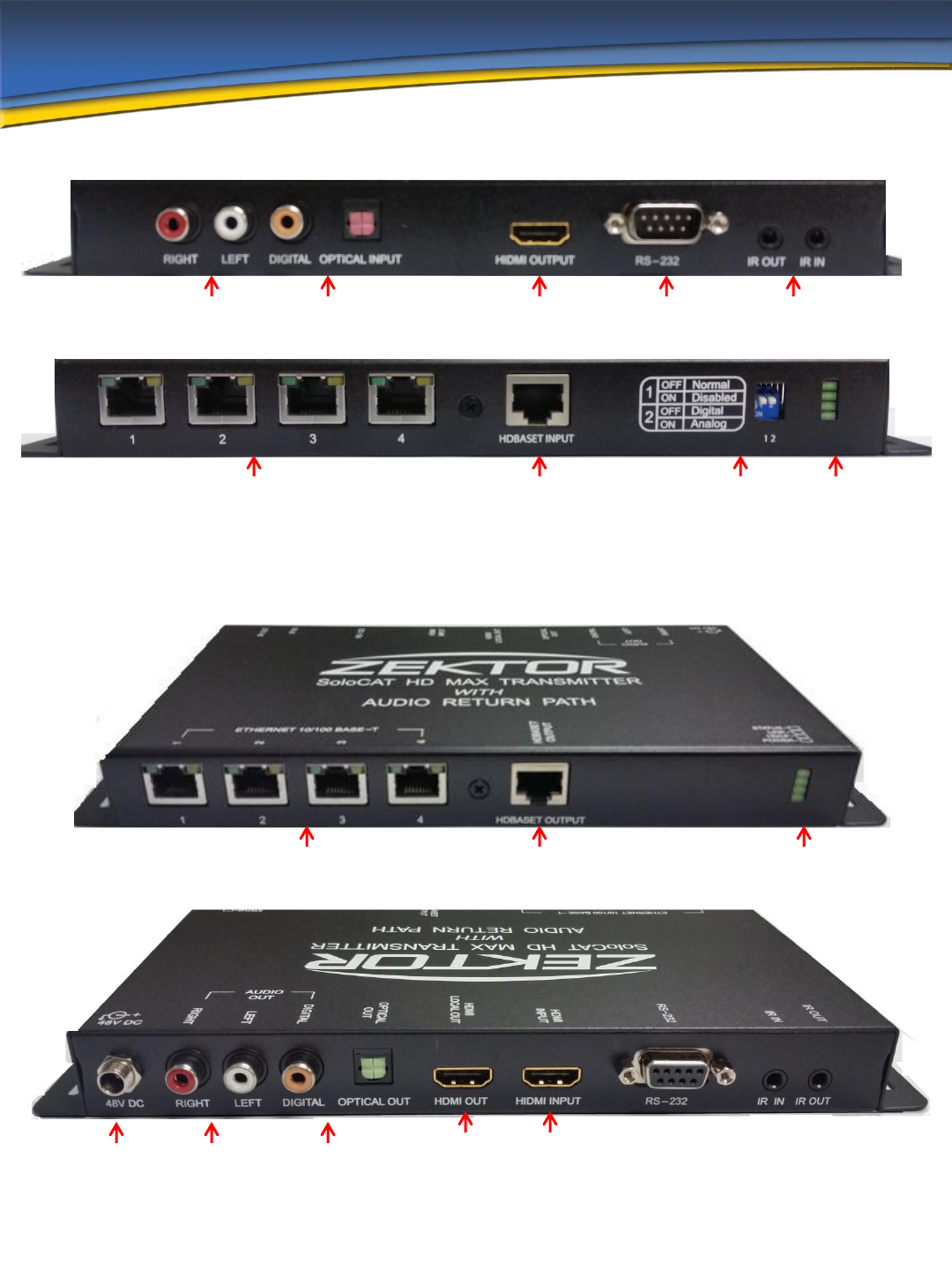

Stereo L/R Input Digital Inputs

SoloCAT HD™ MAX Receiver

4 port 10/100 Ethernet Switch Inputs HDBT Input ARP DIP Switch Info LED Indicators

4 port 10/100 Ethernet Switch Outputs HDBT Output LED Status Indicators

48V Stereo L/R Digital

Power Output Outputs

SoloCAT HD™ MAX Transmitter

Local HDMI Serial IR

HDMI Input bi directional bi directional

Output

HDMI Output Serial IR

bi directional bi directional
